Schematic

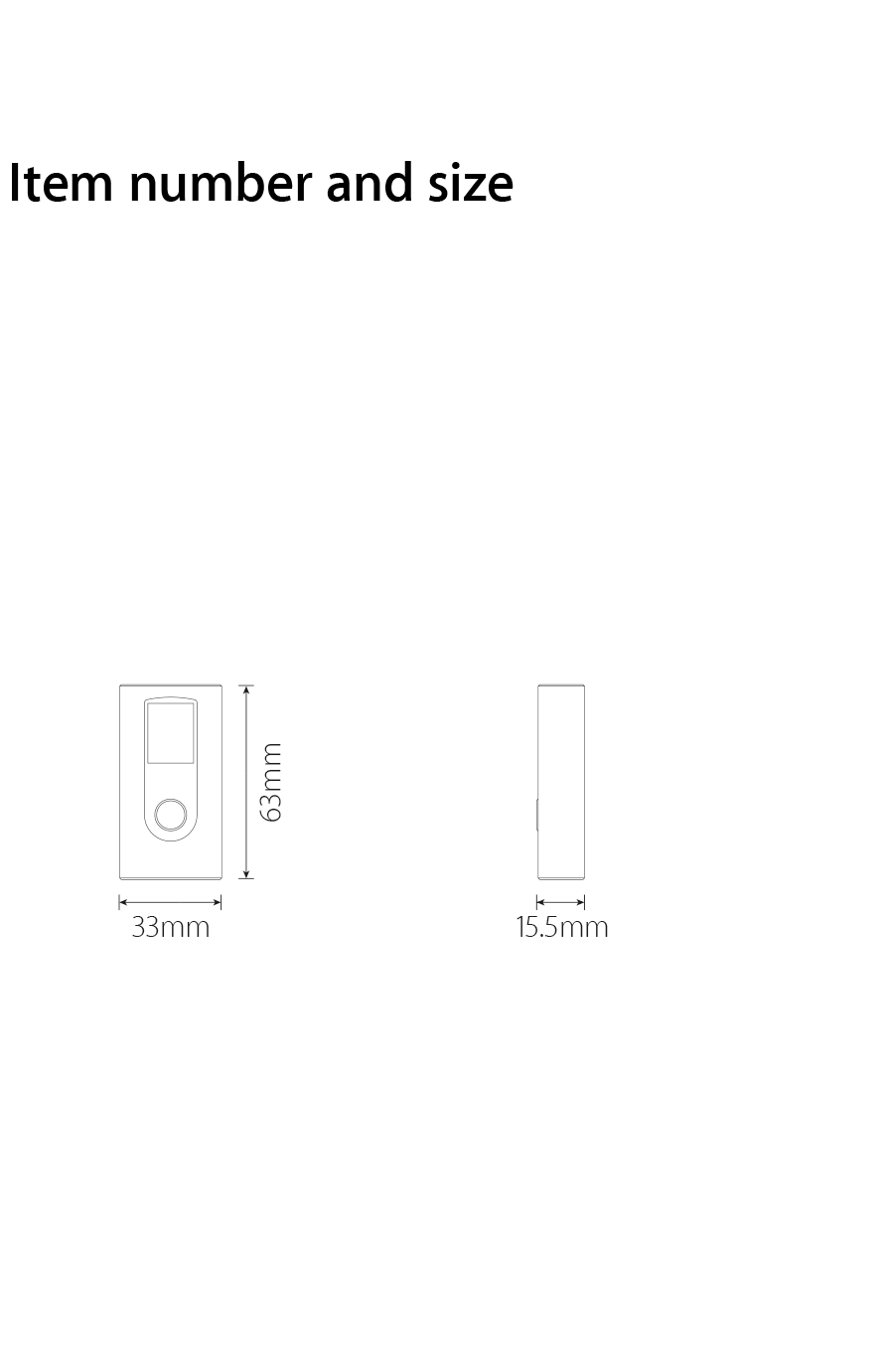

Item number and size

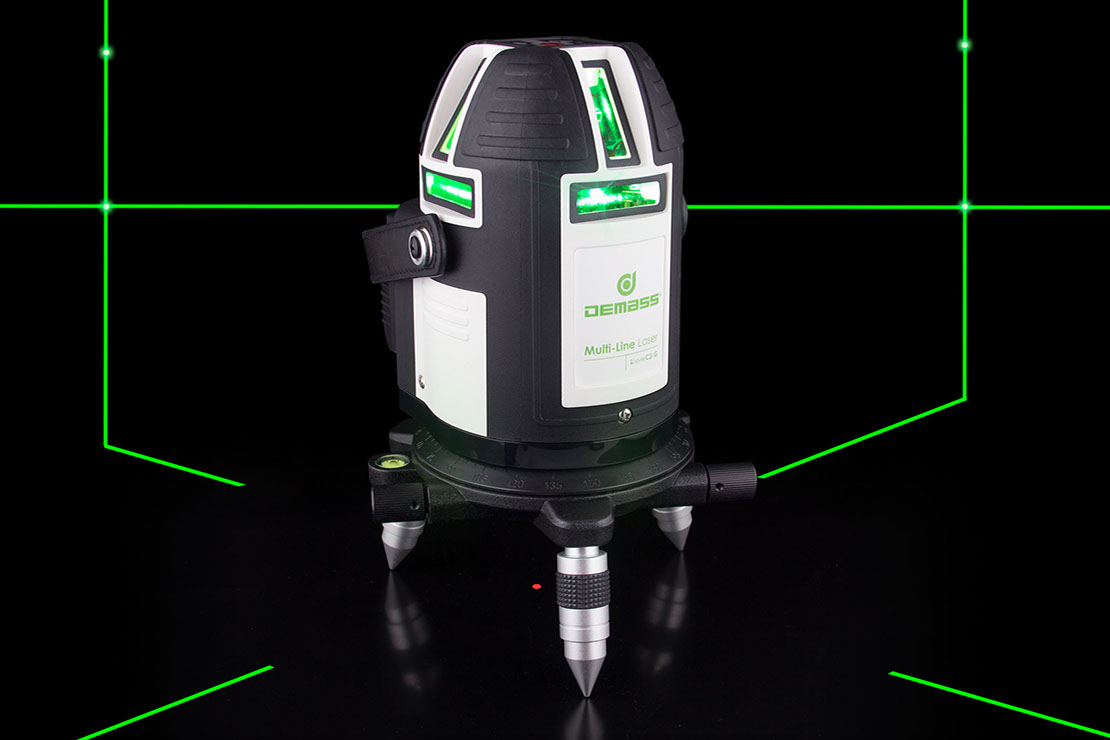

LLevel C2 - G



Label



ABS with TPR



Label



Housing





Technical data



Item number



Laser colour



Laser diode



Laser hazard class



Laser max. output



Laser wave length



Accuracy



Laser module



Compensation range



Self-leveling time



Self-leveling method



Operating distance



Operating distance with detector



Operating temperature



Storage temperature



Operating time



Battery type



Ingress protection



Device diamension



Device weight

LLevel C2 - G



Green



SHARP 10mW



Class 2



≤ 1mW



 505 - 525 nm



± 2 mm / 15 m



Octonary



3° ± 1°



≤ 15s



Electronic automatic



10 m



50 m



-10 ℃ - 50 ℃



-20 ℃ - 70 ℃



3.5 hours



Li-ion battery 12V  2600mAh / 8 x 1.5 V LR 06 ( AA ), 1600 mA max



IP 54



219.2 x 149 x 149 mm



1260 gram

Functional configuration



Horizontal line 1 with dot



Horizontal line 1 + 2 with dots



Horizontal line 1+ 2 + 3 + 4 with dots



Vertical line 1 with dot



Vertical line 1  +  2  with dots



Vertical line 1+ 2+ 3 + 4  with dots



Cross line with dots



Switch



Pulse pattern

●



●



●



●



●



●



●



●



●

Accessories



Glasses



Target board



Charger with adapter cable



Li-ion battery



Dry batteries



User manual



Aluminium case



Color paper box

●



●



●



●



●



●



●



●

Description:      Standard configuration;      It is optional;   —   Cannot configuration

Measurement errors increase under adverse operating conditions.
