Item number and size

LDMeter B40

40 m

130 ft

LDMeter B50

50 m

165 ft

LDMeter B60

60 m

200 ft

LDMeter B80

80 m

260 ft

LDMeter B100

100 m

330 ft

LDMeter B120

120 m

390 ft

​ – EMC

Electromagnetic Compatibility Directive 2014/30/EU



IEC 60825 – 1

Safety of Laser Products



REACH – Directive 1907/2006/EC



RoHS – Directive 2011/65/EU



PAHs

Label



Housing



Packaging



User manual



Certificate

Printing



ABS with TPR



Single display box

LDMeter B80



0.05 - 80 m

LDMeter B100



0.05 - 100 m

LDMeter B120



0.05 - 120 m

Technical data



Item number



Measuring range



Measuring accuracy



Minimum display unit



Measuring units



Measuring times



Laser hazard class



Laser colour



Laser wave length



Laser max. output



Display type



Operating temperature



Storage temperature



Battery life



Battery type



Automatic laser off time



Automatic power off time



Drop test

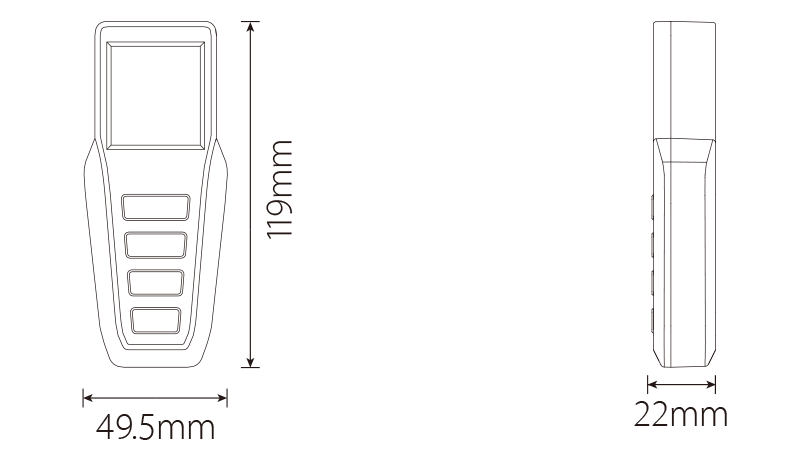

Device diamension



Device weight

± 2 mm



1 mm



m / in / ft / Chi



7 times per second



Class 2



Red



620-690 nm



≤ 1 mW



1.77" VA-LCD with 4 lines, white text on black background



0 - 40 ℃



-20 - 65 ℃



5,000 times measurements



2 x 1.5 V LR03 ( AAA ), 400 mA max.



30 s



180 s



1.5 m height



119 x 49.5 x 22 mm



68 gram

LDMeter B40



0.05 - 40 m

LDMeter B50



0.05 - 50 m

LDMeter B60



0.05 - 60 m

Functional configuration



Distance measurement



Continuous measurement



Min. / Max. measurement



Unit switch



Fore and aft datum switch



Area / Volume measurement



Pythagorean theorem measurement



Addition / subtraction measurement



Data storage



Angular measurement



Buzzer display



Bluetooth

●



●



●



●



●



●



●



●



● ( Last 10 values )                                                          ( Last 20-50 values )



—



—



—

Designed in 2018

Description:      Standard configuration;      It is optional;   —   Cannot configuration

Measurement errors increase under adverse operating conditions.
